Safe PVC Insulated Copper Conductor Cables for Indoor Use

Product Categories
Shanghai Shenghua Cable Group Co., LTD.,
Contact Now

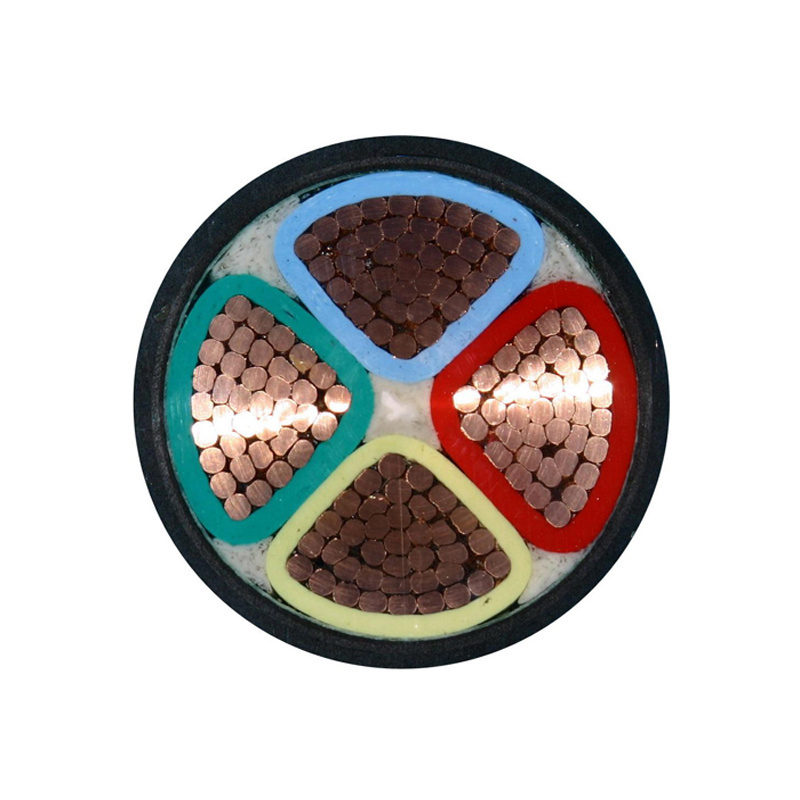

Safe PVC Insulated Copper Conductor Cables for Indoor Use

Model NO. : BV VV BVV BVR

Current : DC & AC

Insulation Material : PVC

Sheath Material : PVC

Material Shape : Round Wire

Wire Core Material : Bare Copper Wire

Certification : ISO, CCC, CE, RoHS

Model : PVC Insulation

Brand : Xinxin

Color : White/Black

MOQ : 500m

Conductor : Copper /Aluminum

Insulation : PVC

Sheath : PVC

Transport Package : Wooden Steel Drum

Specification : 1.1*1.1*0.98m

Trademark : Shanghai Shenghua Cable Group

Origin : Shanghai, China

HS Code : 8544492100

Supply Ability : 100000

Contact Now

CU/PVC/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: PVC/A
Inner Covering: PVC
Sheath: PVC confirm to IEC 60502 Black
Note: Insulation color as per standards or at request
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position

Certificates
CE, RoHS, CCC, KEMA and more others at request
Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner covering Steel Tape Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ºC) Testing Voltage A.C
mm2 pc/mm mm mm mm mm mm kg/km Ω /km kV/5min
1 × 10 7/1.38 1.0 1.0 2 × 0.5 1.4 13.6 348 1.83 3.5
1 × 16 7/1.78 1.0 1.0 2 × 0.5 1.4 14.6 432 1.15 3.5
1 × 25 7/2.14 1.2 1.0 2 × 0.5 1.4 16.4 574 0.727 3.5
1 × 35 7/2.52 1.2 1.0 2 × 0.5 1.5 17.5 699 0.524 3.5
1 × 50 10/2.52 1.4 1.0 2 × 0.5 1.5 19.3 870 0.387 3.5
1 × 70 14/2.52 1.4 1.0 2 × 0.5 1.6 21.1 1118 0.268 3.5
1 × 95 19/2.52 1.6 1.0 2 × 0.5 1.6 23.4 1444 0.193 3.5
1 × 120 24/2.52 1.6 1.0 2 × 0.5 1.7 25.0 1719 0.153 3.5
1 × 150 30/2.52 1.8 1.0 2 × 0.5 1.7 27.0 2046 0.124 3.5
1 × 185 37/2.52 2.0 1.0 2 × 0.5 1.8 30.7 2672 0.0991 3.5
1 × 240 48/2.52 2.2 1.0 2 × 0.5 1.9 33.3 3353 0.0754 3.5
1 × 300 61/2.52 2.4 1.0 2 × 0.5 2.0 36.4 4072 0.0601 3.5
1 × 400 61/2.97 2.6 1.2 2 × 0.5 2.1 40.1 5033 0.0470 3.5
1 × 500 61/3.23 2.8 1.2 2 × 0.5 2.2 44.1 6277 0.0366 3.5
1 × 630 61/3.50 2.8 1.4 2 × 0.5 2.3 48.7 7746 0.0283 3.5
1 × 800 91/3.20 2.8 1.4 2 × 0.5 2.6 51.4 9075 0.0221 3.5
2 × 4 1/2.25 1.0 1.0 2 × 0.2 1.8 16.6 424 4.61 3.5
2 × 6 1/2.76 1.0 1.0 2 × 0.2 1.8 17.6 493 3.08 3.5
2 × 10 7/1.38 1.0 1.0 2 × 0.2 1.8 19.2 663 1.83 3.5
2 × 16 7/1.78 1.0 1.0 2 × 0.2 1.8 22.3 844 1.15 3.5
2 × 25 7/2.14 1.2 1.0 2 × 0.2 1.8 25.8 1154 0.727 3.5
2 × 35 7/2.52 1.2 1.0 2 × 0.2 1.8 28.1 1431 0.524 3.5
2 × 50 10/2.52 1.4 1.0 2 × 0.2 1.8 25.6 1589 0.387 3.5
2 × 70 14/2.52 1.4 1.0 2 × 0.5 2.0 29.3 2243 0.268 3.5
2 × 95 19/2.52 1.6 1.0 2 × 0.5 2.1 33.8 2909 0.193 3.5
2 × 120 24/2.52 1.6 1.0 2 × 0.5 2.2 35.9 3475 0.153 3.5
2 × 150 30/2.52 1.8 1.2 2 × 0.5 2.4 39.7 4250 0.124 3.5
2 × 185 37/2.52 2.0 1.2 2 × 0.5 2.5 42.8 5010 0.0991 3.5
2 × 240 48/2.52 2.2 1.4 2 × 0.5 2.5 49.5 6067 0.0754 3.5
2 × 300 61/2.52 2.4 1.4 2 × 0.5 2.5 52.0 7167 0.0601 3.5
3 × 4 1/2.25 1.0 2 × 0.2 1.8 17.3 489 4.61 3.5
3 × 6 1/2.76 1.0 2 × 0.2 1.8 18.4 577 3.08 3.5
3 × 10 7/1.38 1.0 1.0 2 × 0.2 1.8 21.2 800 1.83 3.5
3 × 16 7/1.78 1.0 1.0 2 × 0.2 1.8 23.5 1050 1.15 3.5
3 × 25 7/2.14 1.2 1.0 2 × 0.2 1.8 27.2 1465 0.727 3.5
3 × 35 7/2.52 1.2 1.0 2 × 0.2 1.8 30.7 2149 0.524 3.5
3 × 50 10/2.52 1.4 1.0 2 × 0.5 1.9 31.3 2453 0.387 3.5
3 × 70 14/2.52 1.4 1.0 2 × 0.5 2.1 33.6 3116 0.268 3.5
3 × 95 19/2.52 1.6 1.2 2 × 0.5 2.2 38.3 4053 0.193 3.5
3 × 120 24/2.52 1.6 1.2 2 × 0.5 2.3 41.9 4930 0.153 3.5
3 × 150 30/2.52 1.8 1.2 2 × 0.5 2.5 47.1 6075 0.124 3.5
3 × 185 37/2.52 2.0 1.4 2 × 0.5 2.6 50.9 7299 0.0991 3.5
3 × 240 48/2.52 2.2 1.4 2 × 0.5 2.8 57.0 9213 0.0754 3.5
3 × 300 61/2.52 2.4 1.6 2 × 0.5 3.0 61.1 11185 0.0601 3.5
3 × 400 61/2.97 2.4 1.8 2 × 0.5 3.2 70.5 13330 0.0470 3.5
4 × 4 1/2.25 1.0 2 × 0.2 1.8 18.5 565 4.61 3.5
4 × 6 1/2.76 1.0 2 × 0.2 1.8 19.7 685 3.08 3.5
4 × 10 7/1.38 1.0 1.0 2 × 0.2 1.8 22.8 960 1.83 3.5
4 × 16 7/1.78 1.0 1.0 2 × 0.2 1.8 25.3 1273 1.15 3.5
4 × 25 7/2.14 1.2 1.0 2 × 0.2 1.8 30.5 1998 0.727 3.5
4 × 35 7/2.52 1.2 1.0 2 × 0.2 1.9 3.5 2505 0.524 3.5
4 × 50 10/2.52 1.4 1.0 2 × 0.5 2.0 35.2 3122 0.387 3.5
4 × 70 14/2.52 1.4 1.2 2 × 0.5 2.2 38.7 4025 0.268 3.5
4 × 95 19/2.52 1.6 1.2 2 × 0.5 2.4 44.7 5291 0.193 3.5
4 × 120 24/2.52 1.6 1.2 2 × 0.5 2.5 49.4 6464 0.153 3.5
4 × 150 30/2.52 1.8 1.4 2 × 0.5 2.6 53.7 7866 0.124 3.5
4 × 185 37/2.52 2.0 1.6 2 × 0.5 2.8 58.9 9542 0.0991 3.5
4 × 240 48/2.52 2.2 1.6 2 × 0.5 3.0 61.0 11916 0.0754 3.5
4 × 300 61/2.52 2.4 1.6 2 × 0.5 3.0 67.0 14118 0.0601 3.5
4 × 400 61/2.97 2.4 1.9 2 × 0.5 3.4 73.6 19950 0.0470 3.5
5 × 2.5 1/1.78 0.8 2 × 0.2 1.8 17.3 488 7.41 3.5
5 × 4 1/2.25 1.0 2 × 0.2 1.8 19.7 644 4.61 3.5
5 × 6 1/2.76 1.0 2 × 0.2 1.8 21.3 790 3.08 3.5
5× 10 7/1.38 1.0 1.0 2 × 0.2 1.8 24.6 1110 1.83 3.5
5 × 16 7/1.78 1.0 1.0 2 × 0.2 1.8 27.4 1485 1.15 3.5
5 × 25 7/2.14 1.2 1.0 2 × 0.2 1.8 33.3 2339 0.727 3.5
5 × 35 7/2.52 1.2 1.2 2 × 0.5 2.0 36.6 2953 0.524 3.5
5× 50 10/2.52 1.4 1.2 2 × 0.5 2.2 41.6 3975 0.387 3.5
5× 70 14/2.52 1.4 1.2 2 × 0.5 2.3 45.5 5125 0.268 3.5
5× 95 19/2.52 1.6 1.4 2 × 0.5 2.5 52.1 6798 0.193 3.5
5 × 120 24/2.52 1.6 1.4 2 × 0.5 2.6 57.3 8217 0.153 3.5
5 × 150 30/2.52 1.8 1.6 2 × 0.5 2.8 63.1 10030 0.124 3.5
5 × 185 37/2.52 2.0 1.6 2 × 0.5 3.0 69.9 12275 0.0991 3.5
5 × 240 48/2.52 2.2 1.8 2 × 0.5 3.2 77.1 15077 0.0754 3.5
5 × 300 61/2.52 2.4 1.9 2 × 0.5 3.2 86.5 18214 0.0601 3.5
5 × 400 61/2.97 2.4 2 × 0.5 3.5 92.2 22864 0.0470 3.5
3 × 4+ 1 × 2.5 1/2.25+1/1.38 1.0 0.8 2 × 0.2 1.8 17.9 538 4.61 7.41 3.5
3 × 6+ 1 × 4 1/2.76+1/2.25 1.0 1.0 2 × 0.2 1.8 19.5 657 3.08 4.61 3.5
3 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.0 2 × 0.2 1.8 22.1 894 1.83 3.08 3.5
3 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.0 2 × 0.2 1.8 24.7 1194 1.15 1.83 3.5
3 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.0 2 × 0.2 1.8 28.5 1668 0.727 1.15 3.5
3 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.0 2 × 0.2 1.8 31.7 2243 0.524 1.15 3.5
3 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 1.0 2 × 0.5 2.0 35.0 2852 0.387 0.727 3.5
3 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2 × 0.5 2.1 38.5 3657 0.268 0.524 3.5
3 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 1.2 2 × 0.5 2.3 44.3 4796 0.193 0.387 3.5
3 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 1.2 2 × 0.5 2.4 49.0 5912 0.153 0.268 3.5
3 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2 × 0.5 2.5 53.5 7025 0.124 0.268 3.5
3 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 1.4 2 × 0.5 2.7 58.9 8598 0.0991 0.193 3.5
3 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2 × 0.5 2.9 60.6 10631 0.0754 0.153 3.5
3 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 1.6 2 × 0.5 3.1 65.6 12913 0.0601 0.124 3.5
3 × 400+ 1 × 240 61/2.97+48/2.52 2.4 1.8 1.8 2 × 0.5 3.3 72.8 15410 0.0470 0.0754 3.5
3 × 4+ 2 × 2.5 1/2.25+1/1.38 1.0 0.8 1.0 2 × 0.2 1.8 18.8 580 4.61 7.41 3.5
3 × 6+ 2 × 4 1/2.76+1/2.25 1.0 1.0 1.0 2 × 0.2 1.8 20.7 728 3.08 4.61 3.5
3 × 10+ 2 × 6 7/1.38+1/2.8 1.0 1.0 1.0 2 × 0.2 1.8 23.3 973 1.83 3.08 3.5
3 × 16+ 2 × 10 7/1.78+7/1.38 1.0 1.0 1.0 2 × 0.2 1.8 26.3 1323 1.15 1.83 3.5
3 × 25+ 2 × 16 7/2.14+7/1.78 1.2 1.0 1.0 2 × 0.2 1.8 31.5 2053 0.727 1.15 3.5
3 × 35+ 2 × 16 7/2.52+7/1.78 1.2 1.0 1.0 2 × 0.2 1.9 33.6 2406 0.524 1.15 3.5
3 × 50+ 2 × 25 10/2.52+7/2.14 1.4 1.2 1.2 2 × 0.5 2.1 38.4 3371 0.387 0.727 3.5
3 × 70+ 2 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2 × 0.5 2.2 42.6 4350 0.268 0.524 3.5
3 × 95+ 2 × 50 19/2.52+10/2.52 1.6 1.4 1.2 2 × 0.5 2.4 48.5 5736 0.193 0.387 3.5
3 × 120+ 2 × 70 24/2.52+14/2.52 1.6 1.4 1.4 2 × 0.5 2.5 53.4 7126 0.153 0.268 3.5
3 × 150+ 2 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2 × 0.5 2.6 57.2 8249 0.124 0.268 3.5
3 × 185+ 2 × 95 37/2.52+19/2.52 2.0 1.6 1.6 2 × 0.5 2.8 63.9 10254 0.0991 0.193 3.5
3 × 240+ 2 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2 × 0.5 3.0 71.4 12888 0.0754 0.153 3.5
3 × 300+ 2 × 150 61/2.52+30/2.52 2.4 1.6 1.8 2 × 0.5 3.2 79.3 15483 0.0601 0.124 3.5
3 × 400+ 2 × 240 61/2.97+48/2.52 2.6 1.6 2 × 0.5 3.4 86.7 19950 0.0470 0.0754 3.5
4 × 4+ 1 × 2.5 1/2.25+1/1.38 1.0 0.8 1.0 2 × 0.2 1.8 19.2 605 4.61 7.41 3.5
4 × 6+ 1 × 4 1/2.76+1/2.25 1.0 1.0 1.0 2 × 0.2 1.8 20.8 765 3.08 4.61 3.5
4 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.0 2 × 0.2 1.8 23.9 152 1.83 3.08 3.5
4 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.0 2 × 0.2 1.8 26.9 1482 1.15 1.83 3.5
4 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.0 2 × 0.2 1.8 32.4 2312 0.727 1.15 3.5
4 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.0 2 × 0.2 1.9 35.1 2756 0.524 1.15 3.5
4 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 1.2 2 × 0.5 2.1 39.7 3680 0.387 0.727 3.5
4 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2 × 0.5 2.3 44.0 4768 0.268 0.524 3.5
4 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 1.4 2 × 0.5 2.4 50.2 6267 0.193 0.387 3.5
4 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 1.4 2 × 0.5 2.6 55.1 7698 0.153 0.268 3.5
4 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2 × 0.5 2.7 59.9 6216 0.124 0.268 3.5
4 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 1.6 2 × 0.5 2.9 66.5 11293 0.0991 0.193 3.5
4 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2 × 0.5 3.1 74.3 14371 0.0754 0.153 3.5
4 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 1.8 2 × 0.5 3.3 80.1 17449 0.0601 0.124 3.5
4 × 400+ 1 × 240 61/2.97+48/2.52 2.4 1.6 2 × 0.5 3.6 88.2 21578 0.0470 0.0754 3.5
Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner covering Steel Wire Diameter Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ºC) Testing Voltage A.C
mm2 pc/mm mm mm mm mm mm kg/km Ω /km kV/5min
1 × 10 7/1.38 1.0 1.0 1.8 1.8 14.0 348 1.83 3.5
1 × 16 7/1.78 1.0 1.0 1.8 1.8 15.0 432 1.15 3.5
1 × 25 7/2.14 1.2 1.0 1.25 1.8 17.3 574 0.727 3.5
1 × 35 7/2.52 1.2 1.0 1.25 1.8 18.3 699 0.524 3.5
1 × 50 10/2.52 1.4 1.0 1.25 1.8 19.7 870 0.387 3.5
1 × 70 14/2.52 1.4 1.0 1.25 1.8 21.4 1118 0.268 3.5
1 × 95 19/2.52 1.6 1.0 1.6 1.8 23.8 1444 0.193 3.5
1 × 120 24/2.52 1.6 1.0 1.6 1.8 25.4 1719 0.153 3.5
1 × 150 30/2.52 1.8 1.0 1.6 1.8 27.2 2046 0.124 3.5
1 × 185 37/2.52 2.0 1.0 1.6 1.9 29.2 2672 0.0991 3.5
1 × 240 48/2.52 2.2 1.0 1.6 1.9 32.0 3353 0.0754 3.5
1 × 300 61/2.52 2.4 1.0 2.0 2.1 35.4 4072 0.0601 3.5
1 × 400 61/2.97 2.6 1.2 2.0 2.2 39.7 5033 0.0470 3.5
1 × 500 61/3.23 2.8 1.2 2.0 2.3 43.6 6277 0.0366 3.5
1 × 630 61/3.50 2.8 1.4 2.5 2.5 49.6 7746 0.0283 3.5
1 × 800 91/3.20 2.8 1.4 2.5 2.7 55.0 9075 0.0221 3.5
2 × 10 7/1.38 1.0 1.0 1.6 1.8 23.3 663 1.83 3.5
2 × 16 7/1.78 1.0 1.0 1.6 1.8 25.4 844 1.15 3.5
2 × 25 7/2.14 1.2 1.0 1.6 1.8 28.1 1154 0.727 3.5
2 × 35 7/2.52 1.2 1.0 1.6 1.9 30.2 1431 0.524 3.5
2 × 50 10/2.52 1.4 1.0 1.6 1.9 27.9 1589 0.387 3.5
2 × 70 14/2.52 1.4 1.0 1.6 1.9 29.3 2243 0.268 3.5
2 × 95 19/2.52 1.6 1.0 1.6 1.9 32.6 2909 0.193 3.5
2 × 120 24/2.52 1.6 1.0 2.0 2.0 35.8 3475 0.153 3.5
2 × 150 30/2.52 1.8 1.2 2.0 2.2 39.4 4250 0.124 3.5
2 × 185 37/2.52 2.0 1.2 2.0 2.2 42.0 5010 0.0991 3.5
2 × 240 48/2.52 2.2 1.4 2.5 2.5 50.9 6067 0.0754 3.5
2 × 300 61/2.52 2.4 1.4 2.5 2.6 53.1 7167 0.0601 3.5
3 × 10 7/1.38 1.0 1.0 1.6 1.8 24.2 800 1.83 3.5
3 × 16 7/1.78 1.0 1.0 1.6 1.8 26.5 1050 1.15 3.5
3 × 25 7/2.14 1.2 1.0 1.6 1.8 29.8 1465 0.727 3.5
3 × 35 7/2.52 1.2 1.0 1.6 1.9 31.8 2149 0.524 3.5
3 × 50 10/2.52 1.4 1.0 1.6 1.9 31.7 2453 0.387 3.5
3 × 70 14/2.52 1.4 1.0 2.0 2.0 35.8 3116 0.268 3.5
3 × 95 19/2.52 1.6 1.2 2.0 2.2 41.1 4053 0.193 3.5
3 × 120 24/2.52 1.6 1.2 2.0 2.3 42.9 4930 0.153 3.5
3 × 150 30/2.52 1.8 1.2 2.5 2.5 49.1 6075 0.124 3.5
3 × 185 37/2.52 2.0 1.4 2.5 2.6 52.9 7299 0.0991 3.5
3 × 240 48/2.52 2.2 1.4 2.5 2.8 58.2 9213 0.0754 3.5
3 × 300 61/2.52 2.4 1.6 2.5 3.0 64.2 11185 0.0601 3.5
3 × 400 61/2.97 2.4 1.8 3.15 3.5 79.2 13330 0.0470 3.5
4 × 10 7/1.38 1.0 1.0 1.6 1.8 25.8 960 1.83 3.5
4 × 16 7/1.78 1.0 1.0 1.6 1.8 28.3 1273 1.15 3.5
4 × 25 7/2.14 1.2 1.0 1.6 1.9 31.8 1998 0.727 3.5
4 × 35 7/2.52 1.2 1.0 2.0 2.0 35.2 2505 0.524 3.5
4 × 50 10/2.52 1.4 1.0 2.0 2.0 35.1 3122 0.387 3.5
4 × 70 14/2.52 1.4 1.2 2.0 2.1 36.7 4025 0.268 3.5
4 × 95 19/2.52 1.6 1.2 2.5 2.3 42.8 5291 0.193 3.5
4 × 120 24/2.52 1.6 1.2 2.5 2.3 44.6 6464 0.153 3.5
4 × 150 30/2.52 1.8 1.4 2.5 2.5 50.3 7866 0.124 3.5
4 × 185 37/2.52 2.0 1.6 2.5 2.6 54.2 9542 0.0991 3.5
4 × 240 48/2.52 2.2 1.6 2.5 2.8 59.6 11916 0.0754 3.5
4 × 300 61/2.52 2.4 1.6 2.5 3.0 65.3 14118 0.0601 3.5
4 × 400 61/2.97 2.4 1.9 3.5 3.6 82.4 19950 0.0470 3.5
5× 10 7/1.38 1.0 1.0 1.6 1.8 27.4 1110 1.83 3.5
5 × 16 7/1.78 1.0 1.0 1.6 1.9 30.4 1485 1.15 3.5
5 × 25 7/2.14 1.2 1.0 2.0 2.0 35.2 2339 0.727 3.5
5 × 35 7/2.52 1.2 1.2 2.0 2.1 38.5 2953 0.524 3.5
5× 50 10/2.52 1.4 1.2 2.0 2.3 42.4 3975 0.387 3.5
5× 70 14/2.52 1.4 1.2 2.5 2.4 47.4 5125 0.268 3.5
5× 95 19/2.52 1.6 1.4 2.5 2.6 52.5 6798 0.193 3.5
5 × 120 24/2.52 1.6 1.4 2.5 2.7 57.0 8217 0.153 3.5
5 × 150 30/2.52 1.8 1.6 2.5 2.9 61.9 10030 0.124 3.5
5 × 185 37/2.52 2.0 1.6 2.5 3.1 68.0 12275 0.0991 3.5
5 × 240 48/2.52 2.2 1.8 3.15 3.5 79.0 15077 0.0754 3.5
5 × 300 61/2.52 2.4 1.9 3.15 3.7 86.2 18214 0.0601 3.5
3 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.0 1.6 1.8 25.0 894 1.83 3.08 3.5
3 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.0 1.6 1.8 27.5 1194 1.15 1.83 3.5
3 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.0 1.6 1.9 30.9 1668 0.727 1.15 3.5
3 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.0 1.6 1.9 32.8 2243 0.524 1.15 3.5
3 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 1.0 2.0 2.0 34.6 2852 0.387 0.727 3.5
3 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2.0 2.1 38.4 3657 0.268 0.524 3.5
3 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 1.2 2.5 2.3 44.4 4796 0.193 0.387 3.5
3 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 1.2 2.5 2.4 47.1 5912 0.153 0.268 3.5
3 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2.5 2.6 51.8 7025 0.124 0.268 3.5
3 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 1.4 2.5 2.7 55.8 8598 0.0991 0.193 3.5
3 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2.5 2.9 61.5 10631 0.0754 0.153 3.5
3 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 1.6 2.5 3.1 67.3 12913 0.0601 0.124 3.5
3 × 400+ 1 × 185 61/2.97+37/2.52 2.4 1.8 1.8 3.15 3.5 81.1 15410 0.0470 0.0754 3.5
3 × 4+ 2 × 2.5 1/2.25+1/1.38 1.0 0.8 1.0 1.6 580 4.61 7.41 3.5
3 × 6+ 2 × 4 1/2.76+1/2.25 1.0 1.0 1.0 1.6 728 3.08 4.61 3.5
3 × 10+ 2 × 6 7/1.38+1/2.8 1.0 1.0 1.0 1.6 1.8 26.3 973 1.83 3.08 3.5
3 × 16+ 2 × 10 7/1.78+7/1.38 1.0 1.0 1.0 2.0 1.8 29.2 1323 1.15 1.83 3.5
3 × 25+ 2 × 16 7/2.14+7/1.78 1.2 1.0 1.0 2.0 1.9 32.8 2053 0.727 1.15 3.5
3 × 35+ 2 × 16 7/2.52+7/1.78 1.2 1.0 1.0 2.0 2.0 35.6 2406 0.524 1.15 3.5
3 × 50+ 2 × 25 10/2.52+7/2.14 1.4 1.2 1.2 2.5 2.1 39.9 3371 0.387 0.727 3.5
3 × 70+ 2 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2.5 2.3 43.1 4350 0.268 0.524 3.5
3 × 95+ 2 × 50 19/2.52+10/2.52 1.6 1.4 1.2 2.5 2.4 48.4 5736 0.193 0.387 3.5
3 × 120+ 2 × 70 24/2.52+14/2.52 1.6 1.4 1.4 2.5 2.6 53.7 7126 0.153 0.268 3.5
3 × 150+ 2 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2.5 2.7 56.2 8249 0.124 0.268 3.5
3 × 185+ 2 × 95 37/2.52+19/2.52 2.0 1.6 1.6 2.5 2.9 62.5 10254 0.0991 0.193 3.5
3 × 240+ 2 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2.5 3.1 67.9 12888 0.0754 0.153 3.5
3 × 300+ 2 × 150 61/2.52+30/2.52 2.4 1.6 1.8 2.5 3.5 76.4 15483 0.0601 0.124 3.5
4 × 4+ 1 × 2.5 1/2.25+1/1.38 1.0 0.8 1.0 1.6 605 4.61 7.41 3.5
4 × 6+ 1 × 4 1/2.76+1/2.25 1.0 1.0 1.0 1.6 765 3.08 4.61 3.5
4 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.0 2.0 1.8 26.9 152 1.83 3.08 3.5
4 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.0 2.0 1.8 29.8 1482 1.15 1.83 3.5
4 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.0 2.0 2.0 34.5 2312 0.727 1.15 3.5
4 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.0 2.0 2.1 36.9 2756 0.524 1.15 3.5
4 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 1.2 2.5 2.2 39.9 3680 0.387 0.727 3.5
4 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 1.2 2.5 2.3 43.1 4768 0.268 0.524 3.5
4 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 1.4 2.5 2.5 48.8 6267 0.193 0.387 3.5
4 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 1.4 2.5 2.6 53.7 7698 0.153 0.268 3.5
4 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 1.4 2.5 2.7 56.2 6216 0.124 0.268 3.5
4 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 1.6 2.5 2.9 62.5 11293 0.0991 0.193 3.5
4 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 1.6 2.5 3.1 67.9 14371 0.0754 0.153 3.5
4 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 1.8 3.15 3.6 82.0 17449 0.0601 0.124 3.5
Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ºC) Testing Voltage A.C
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min
1 × 1.5 1/1.38 0.8 1.4 6.1 50.7 12.1 3.5
1 × 2.5 1/1.78 0.8 1.4 6.5 63.5 7.41 3.5
1 × 4 1/2.25 1.0 1.4 7.4 87.7 4.61 3.5
1 × 6 1/2.76 1.0 1.4 7.9 111 3.08 3.5
1 × 10 7/1.38 1.0 1.4 9.2 166.6 1.83 3.5
1 × 16 7/1.78 1.0 1.4 10.3 233.3 1.15 3.5
1 × 25 7/2.14 1.2 1.4 12.0 344.9 0.727 3.5
1 × 35 7/2.52 1.2 1.4 13.2 449.8 0.524 3.5
1 × 50 10/2.52 1.4 1.4 14.9 590.5 0.387 3.5
1 × 70 14/2.52 1.4 1.4 16.7 807.3 0.268 3.5
1 × 95 19/2.52 1.6 1.5 19.3 1102 0.193 3.5
1 × 120 24/2.52 1.6 1.5 20.9 1349 0.153 3.5
1 × 150 30/2.52 1.8 1.6 23.1 1654 0.124 3.5
1 × 185 37/2.52 2.0 1.7 25.6 2060 0.0991 3.5
1 × 240 48/2.52 2.2 1.8 28.8 2651 0.0754 3.5
1 × 300 61/2.52 2.4 1.9 31.9 3323 0.0601 3.5
1 × 400 61/2.97 2.6 2.0 35.5 4205 0.0470 3.5
1 × 500 61/3.23 2.8 2.1 39.7 5359 0.0366 3.5
1 × 630 61/3.50 2.9 2.2 43.7 6807 0.0283 3.5
1 × 800 91/3.20 2.9 2.4 46.1 8064 0.0221 3.5
2 × 1.5 1/1.38 0.8 1.8 10.5 119 12.1000
2 × 2.5 1/1.78 0.8 1.8 11.3 150 7.41 3.5
2 × 4 1/2.25 1.0 1.8 13.1 210 4.61 3.5
2 × 6 1/2.76 1.0 1.8 14.1 264 3.08 3.5
2 × 10 7/1.38 1.0 1.8 16.7 393 1.83 3.5
2 × 16 7/1.78 1.0 1.8 18.8 541 1.15 3.5
2 × 25 7/2.14 1.2 1.8 22.2 794 0.727 3.5
2 × 35 7/2.52 1.2 1.8 24.5 1037 0.524 3.5
2 × 50 10/2.52 1.4 1.8 21.8 1227 0.387 3.5
2 × 70 14/2.52 1.4 1.9 24.7 1650 0.268 3.5
2 × 95 19/2.52 1.6 2.0 29.2 2213 0.193 3.5
2 × 120 24/2.52 1.6 2.1 31.3 2733 0.153 3.5
2 × 150 30/2.52 1.8 2.2 34.7 3396 0.124 3.5
2 × 185 37/2.52 2.0 2.4 37.9 3943 0.0991 3.5
2 × 240 48/2.52 2.2 2.4 44.3 5135 0.0754 3.5
2 × 300 61/2.52 2.4 2.5 49.0 6436 0.0601 3.5
2 × 400 61/2.97 2.6 2.8 56.0 8356 0.0470 3.5
3 × 1.5 1/1.38 0.8 1.8 10.9 142 12.1 3.5
3 × 2.5 1/1.78 0.8 1.8 11.8 187 7.41 3.5
3 × 4 1/2.25 1.0 1.8 13.7 265 4.61 3.5
3 × 6 1/2.76 1.0 1.8 14.8 335 3.08 3.5
3 × 10 7/1.38 1.0 1.8 17.6 514 1.83 3.5
3 × 16 7/1.78 1.0 1.8 19.9 728 1.15 3.5
3 × 25 7/2.14 1.2 1.8 23.6 1084 0.727 3.5
3 × 35 7/2.52 1.2 1.8 26.1 1422 0.524 3.5
3 × 50 10/2.52 1.4 1.8 26.5 1801 0.387 3.5
3 × 70 14/2.52 1.4 2.0 28.8 2415 0.268 3.5
3 × 95 19/2.52 1.6 2.1 33.6 3205 0.193 3.5
3 × 120 24/2.52 1.6 2.2 37.1 4037 0.153 3.5
3 × 150 30/2.52 1.8 2.3 41.9 5028 0.124 3.5
3 × 185 37/2.52 2.0 2.5 45.9 6180 0.0991 3.5
3 × 240 48/2.52 2.2 2.7 51.8 7949 0.0754 3.5
3 × 300 61/2.52 2.4 2.9 55.3 9780 0.0601 3.5
3 × 400 61/2.97 2.6 3.0 60.6 12103 0.0470 3.5
4 × 2.5 1/1.78 0.8 1.8 12.7 232 7.41 3.5
4 × 4 1/2.25 1.0 1.8 14.9 322 4.61 3.5
4 × 6 1/2.76 1.0 1.8 16.1 422 3.08 3.5
4 × 10 7/1.38 1.0 1.8 19.2 649 1.83 3.5
4 × 16 7/1.78 1.0 1.8 21.7 922 1.15 3.5
4 × 25 7/2.14 1.2 1.8 25.9 1373 0.727 3.5
4 × 35 7/2.52 1.2 1.8 28.7 1802 0.524 3.5
4 × 50 10/2.52 1.4 1.9 30.4 2380 0.387 3.5
4 × 70 14/2.52 1.4 2.1 33.9 3202 0.268 3.5
4 × 95 19/2.52 1.6 2.2 39.7 4315 0.193 3.5
4 × 120 24/2.52 1.6 2.4 44.2 5359 0.153 3.5
4 × 150 30/2.52 1.8 2.5 48.7 6679 0.124 3.5
4 × 185 37/2.52 2.0 2.7 53.5 8190 0.0991 3.5
4 × 240 48/2.52 2.2 2.9 55.4 10494 0.0754 3.5
4 × 300 61/2.52 2.4 3.0 61.0 12948 0.0601 3.5
4 × 400 61/2.97 2.6 3.2 70.0 16788 0.0470 3.5
5 × 2.5 1/1.78 0.8 1.8 13.6 272 7.41 3.5
5 × 4 1/2.25 1.0 1.8 16.1 394 4.61 3.5
5 × 6 1/2.76 1.0 1.8 17.7 509 3.08 3.5
5× 10 7/1.38 1.0 1.8 21.0 792 1.83 3.5
5 × 16 7/1.78 1.0 1.8 23.8 1124 1.15 3.5
5 × 25 7/2.14 1.2 1.8 28.7 1696 0.727 3.5
5 × 35 7/2.52 1.2 1.9 32.0 2241 0.524 3.5
5× 50 10/2.52 1.4 2.1 37.4 3158 0.387 3.5
5× 70 14/2.52 1.4 2.2 41.7 4236 0.268 3.5
5× 95 19/2.52 1.6 2.4 48.1 5685 0.193 3.5
5 × 120 24/2.52 1.6 2.5 53.0 7662 0.153 3.5
5 × 150 30/2.52 1.8 2.7 58.6 8743 0.124 3.5
5 × 185 37/2.52 2.0 2.9 65.1 10801 0.0991 3.5
5 × 240 48/2.52 2.2 3.1 72.1 13194 0.0754 3.5
5 × 300 61/2.52 2.4 3.4 80.1 16414 0.0601 3.5
5 × 400 61/2.97 2.6 3.6 87.0 21164 0.0470 3.5
3 × 4+ 1 × 2.5 1/2.25+1/1.38 1.0 0.8 1.8 14.3 254 4.61 7.41 3.5
3 × 6+ 1 × 4 1/2.76+1/2.25 1.0 1.0 1.8 15.8 400 3.08 4.61 3.5
3 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.8 18.5 595 1.83 3.08 3.5
3 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.8 21.1 853 1.15 1.83 3.5
3 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.8 24.9 1267 0.727 1.15 3.5
3 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.8 27.1 1591 0.524 1.15 3.5
3 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 1.9 30.4 2124 0.387 0.727 3.5
3 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 2.0 33.9 2851 0.268 0.524 3.5
3 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 2.2 39.5 3844 0.193 0.387 3.5
3 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 2.3 44.0 4833 0.153 0.268 3.5
3 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 2.4 48.5 5841 0.124 0.268 3.5
3 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 2.6 53.3 7246 0.0991 0.193 3.5
3 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 2.8 55.0 9216 0.0754 0.153 3.5
3 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 3.1 59.8 11388 0.0601 0.124 3.5
3 × 400+ 1 × 240 61/2.97+48/2.52 2.6 1.6 3.3 66.0 14562 0.0470 0.0754 3.5
3 × 4+ 2 × 2.5 1/2.25+1/1.38 1.0 0.8 1.8 15.2 345 4.61 7.41 3.5
3 × 6+ 2 × 4 1/2.76+1/2.25 1.0 1.0 1.8 17.1 463 3.08 4.61 3.5
3 × 10+ 2 × 6 7/1.38+1/2.8 1.0 1.0 1.8 19.7 680 1.83 3.08 3.5
3 × 16+ 2 × 10 7/1.78+7/1.38 1.0 1.0 1.8 22.7 990 1.15 1.83 3.5
3 × 25+ 2 × 16 7/2.14+7/1.78 1.2 1.0 1.8 26.7 1468 0.727 1.15 3.5
3 × 35+ 2 × 16 7/2.52+7/1.78 1.2 1.0 1.8 29.0 1791 0.524 1.15 3.5
3 × 50+ 2 × 25 10/2.52+7/2.14 1.4 1.2 2.0 34.4 2573 0.387 0.727 3.5
3 × 70+ 2 × 35 14/2.52+7/2.52 1.4 1.2 2.1 38.7 3464 0.268 0.524 3.5
3 × 95+ 2 × 50 19/2.52+10/2.52 1.6 1.4 2.3 44.4 4697 0.193 0.387 3.5
3 × 120+ 2 × 70 24/2.52+14/2.52 1.6 1.4 2.5 49.0 5935 0.153 0.268 3.5
3 × 150+ 2 × 70 30/2.52+14/2.52 1.8 1.4 2.7 52.9 5968 0.124 0.268 3.5
3 × 185+ 2 × 95 37/2.52+19/2.52 2.0 1.6 2.7 59.3 8554 0.0991 0.193 3.5
3 × 240+ 2 × 120 48/2.52+24/2.52 2.2 1.6 2.9 66.6 11184 0.0754 0.153 3.5
3 × 300+ 2 × 150 61/2.52+30/2.52 2.4 1.6 3.1 71.1 13719 0.0601 0.124 3.5
3 × 400+ 2 × 240 61/2.97+48/2.52 2.6 1.6 3.3 78.2 18250 0.0470 0.0754 3.5
4 × 4+ 1 × 2.5 1/2.25+1/1.38 1.0 0.8 1.8 15.6 358 4.61 7.41 3.5
4 × 6+ 1 × 4 1/2.76+1/2.25 1.0 1.0 1.8 17.4 493 3.08 4.61 3.5
4 × 10+ 1 × 6 7/1.38+1/2.8 1.0 1.0 1.8 20.3 733 1.83 3.08 3.5
4 × 16+ 1 × 10 7/1.78+7/1.38 1.0 1.0 1.8 23.3 1118 1.15 1.83 3.5
4 × 25+ 1 × 16 7/2.14+7/1.78 1.2 1.0 1.8 27.6 1662 0.727 1.15 3.5
4 × 35+ 1 × 16 7/2.52+7/1.78 1.2 1.0 1.8 30.3 2046 0.524 1.15 3.5
4 × 50+ 1 × 25 10/2.52+7/2.14 1.4 1.2 2.0 5.8 2820 0.387 0.727 3.5
4 × 70+ 1 × 35 14/2.52+7/2.52 1.4 1.2 2.1 39.9 3782 0.268 0.524 3.5
4 × 95+ 1 × 50 19/2.52+10/2.52 1.6 1.4 2.3 46.0 5088 0.193 0.387 3.5
4 × 120+ 1 × 70 24/2.52+14/2.52 1.6 1.4 2.5 51.0 6394 0.153 0.268 3.5
4 × 150+ 1 × 70 30/2.52+14/2.52 1.8 1.4 2.6 55.4 7725 0.124 0.268 3.5
4 × 185+ 1 × 95 37/2.52+19/2.52 2.0 1.6 2.8 61.9 9894 0.0991 0.193 3.5
4 × 240+ 1 × 120 48/2.52+24/2.52 2.2 1.6 3.0 69.7 12306 0.0754 0.153 3.5
4 × 300+ 1 × 150 61/2.52+30/2.52 2.4 1.6 3.2 74.3 15397 0.0601 0.124 3.5
4 × 400+ 1 × 240 61/2.97+48/2.52 2.6 1.6 3.4 79.1 19928 0.0470 0.0754 3.5

Safe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor UseSafe PVC Insulated Copper Conductor Cables for Indoor Use

China Safe PVC Insulated Copper Conductor Cables for Indoor Use factory

Safe PVC Insulated Copper Conductor Cables for Indoor Use Images

Inquiry Cart 0
Send your message to this supplier

*From:
*To: Shanghai Shenghua Cable Group Co., LTD.,
*Subject:
*Message:
Characters Remaining: (0/3000)

You May Like
